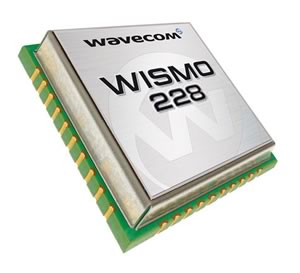

WaveCom Wismo 228
WISMO® (WIreless Standard MOdem) is part of a family of entry level GSM/GPRS modems for M2M applications. It combines the benefits of ease of use, superior quality and reliable supply, all at a very competitive price and without compromising M2M industry specific requirements. The WISMO 228 is specifically designed for M2M systems being deployed where transcontinental roaming is required such as between Europe and the Americas.
| Memory | Internal |
|---|---|
| Digital Control | Up to 11 GPIOs, 2 PWM, 1 SPI (for debug) |
| Digital Comms | 1 UART |
| Analogue Interfaces | 1 ADC |
| Audio Interfaces | 1 analogue audio |
| Cellular Radio | Dual band 850/900/1800/1900MHz |
| Cellular Data | GSM, CSD, SMS, FAX, GPRS class10 |
| Cellular Voice | Codecs HR, FR, EFR, AMR, quality VDA2A, Echo Cancellation, Noise Reduction |
| Power Supply | Extended power management: 3.2V to 4.8V |
| Low power | consumption: 1.5mA idle (Paging mode 9) |
| Environmental | Extended temperatur range: -40°C to +85°C, RoHS compliant |
| Package | Castellation 46 pads, 25 x 25 x 2.8 mm, 3.8g |
Software
Auron SMS Server is a Windows-based software package that enables you to send, receive and process SMS and e-mail messages. Supported communication protocols: GSM, HTTP, SMPP, SMTP, POP3. Incoming messages are processed by 'triggers', and can be fully customized.
It's a framework for any scenario where one/two-way SMS is required. Create a voting/polling system, send out mass SMS broadcasts, create a reservation system, etc.. Real-life case-studies are included as sample projects.
