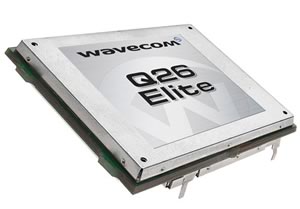

Quik Q26 Elite
The Q26 Elite Wireless CPU ® is a CDMA 1xRTT wireless device that when integrated will allow any application or machine to send voice and data over a CDMA wireless network. The Q26 Elite utilizes the new Qualcomm QSC6055 chipset, ensuring availability for many years to come. It comes in the same form factor as all of Wavecom’s Q26 Wireless CPU® devices, enabling one hardware platform design to be used for all wireless technologies.
| Core processor | ARM9, 32 bit, 192 MHz |
|---|---|
| Digital Control | Up to 20 GPIO, I2C, 5x5 keyboard |
| Digital Comms | 2 UART, USB |
| Analogue Interfaces | 2 ADC, DAC |
| Audio Interfaces | 2 analog differential audio, 1 PCM |
| Cellular Radio | Dual Band 800/1900 MHz |
| Cellular Data | CDMA 2000 1xRTT |
| Location Solution | gpsOne® |
| RF and IO connectivity | 2 UFL (RF & GPS) with option for board to board connections, 100 I/O pin system connector |
| Dimensions | 40.0mm x 32.2mm x 6.6mm |
Software
Auron SMS Server is a Windows-based software package that enables you to send, receive and process SMS and e-mail messages. Supported communication protocols: GSM, HTTP, SMPP, SMTP, POP3. Incoming messages are processed by 'triggers', and can be fully customized.
It's a framework for any scenario where one/two-way SMS is required. Create a voting/polling system, send out mass SMS broadcasts, create a reservation system, etc.. Real-life case-studies are included as sample projects.
