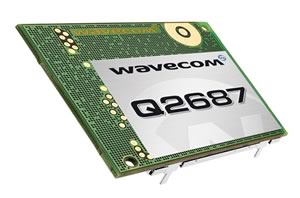

WaveCom Q2687

WaveCom Q2687

The Q2687 Wireless CPU® is backwards compatible with the Q2686, and forwards compatible with 3G evolutions and their cellular software application development environments so that application portability is made easy. It also supports a new parallel data bus for interfacing to displays and external memory, and data bearers up to EDGE.

Core processor ARM9 4 6, 32 bit, 104 MHz running Open AT® RTOS as standard
Memory Internal 32 / 8 Mb Flash
Digital Control Up to 44 IOs, 2 INT, 2 SPI, 1 I2C, 5 x 5 keyboard
Digital Comms 2 UART, USB 2.0 , 1 parallel ports , 1 DAC
Analogue Interfaces 2 ADC
Audio Interfaces 2 analog differential audio, 1 PCM
Cellular Radio Quad GSM band
Cellular Data GSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet), EDGE cl 10
Cellular Voice Quad codec (FR/HR/EFR/AMR), VDA2 A
RF and IO connectivity 1 UFL connector , 1 RF connection which allows to support board to board solution , 1 RF solder pad, 100 I/O Pins connector
Dimensions L 40 x W 32 x H 4 mm
