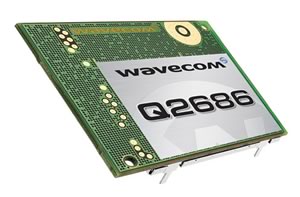

WaveCom Q2686
Equipped with up to 44 GPIOs, the Q2686 is especially suited to applications which require a high number of connections. The Open AT® OS runs on an ARM9 core, providing applications with up to 87 MIPS (using VariSpeed). It features a market-leading range of peripheral interfaces, including companion Bluetooth® and GPS.
| Core processor | ARM9, 32 bit, 104 MHz running Open AT® RTOS as standard |
|---|---|
| Memory | Internal, supports up to 128Mb Flash, 128 MB PSRAM |
| Digital Control | Up to 44 GPIO, 2 INT, 2 SPI, 1 I2C, 5 x 5 keyboard |
| Digital Comms | 2 UART, USB 2.0 |
| Analogue Interfaces | 2 ADC |
| Audio Interfaces | 2 analogue channels, 1 PCM |
| Cellular Radio | Global operation (auad GSM band: 800/900/1800/1900 MHz) |
| Cellular Data | GSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet) |
| Cellular Voice | Quad codec (FR/HR/EFR/AMR), VDA2A |
| RF and IO connectivity | 1 UFL connector for GSM FR, 1 RF connection which allows to support board to board solution, 100 I/O Pins connector |
| Dimensions | L40 x W32.2 x H 4mm |
