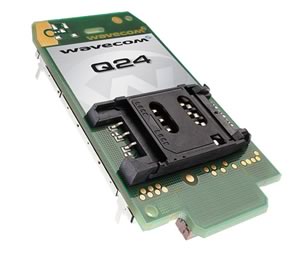

WaveCom Q24
Available in the same form factor for more than 10 years, this evolution of the popular Q24 Series brings a range of new benefits to existing and new produc designs. You can choose between Q24 Classic, Q24 Plus, Q24 Extended or Q24 Auto (see the Wavecom Product Catalogue for details). An embedded SIM holder is available as an option.
| Core processor | ARM7, 32 bit, 52 MHz running Open AT® RTOS as standard |
|---|---|
| Memory Internal | 32Mb Flash and up to 16Mb SRAM or PSRAM |
| Digital Control | 11 IOs, 1 INT, 1 SPI, 1 I2C, 5 x 5 keyboard |
| Digital Comms | 2 UART |
| Analogue Interfaces | 1 ADC |
| Audio Interfaces | 2 analog differential audio |
| Cellular Radio | Supporting 850-900-1800-1900MHz GSM band |
| Cellular Data | GSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet) |
| Cellular Voice | Supported Codecs (FR/EFR/AMR ) (HR as option), VDA2 C |
| RF and IO connectivity | Multiple RF connections possibility (UFL, MMS, connection which allows to support board to board solution, 60 I/O Pins connector |
| Dimensions | L58 x W32 x H 3.9mm |
Software
Auron SMS Server is a Windows-based software package that enables you to send, receive and process SMS and e-mail messages. Supported communication protocols: GSM, HTTP, SMPP, SMTP, POP3. Incoming messages are processed by 'triggers', and can be fully customized.
It's a framework for any scenario where one/two-way SMS is required. Create a voting/polling system, send out mass SMS broadcasts, create a reservation system, etc.. Real-life case-studies are included as sample projects.
