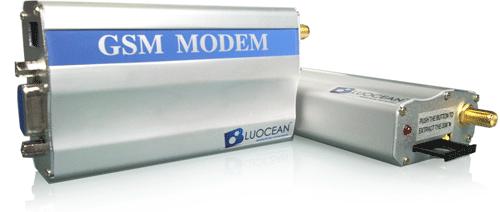

BluOcean GSM-S-A2, GSM-S-U2, GSM-S-W2 GSM GPRS modem series

BluOcean GSM-S-A2, GSM-S-U2, GSM-S-W2 GSM GPRS modem series

Connect using power cable. Suitable for desktop users:

  • SMS, Data, Fax Applications
  • Windows 2000/NT/XP/Vista/Linux/Unix/Mac
  • Long Hours and 24/7 Usage
  • Low power consumption
  • Serial Port RS232 (9pin)
  • Silvery Grey Color With Metal Casing
  • Dimension: 98x54x25mm
  • Weight: 100g

Technical Specifications:

  • Wavecom Chipset
  • SIM holder integrated
  • 3V SIM Interface
  • Activity Status Indication
  • Power Output: Class4 (2W @ EGSM 900/GSM 850); Class1 (1W @ GSM 1800/1900)
  • Normal operation temperature: -20 to 55ºC
  • Operating Voltage : 5 to 24VDC
  • Typical idle mode supply current: 5mA
  • Baud rates: 300-9600 bits/s
  • Compliant with ETSI GSM Phase 2 +
  • Control via AT commands (GSM07.07 & 07.05)

Accessories Included:

  • Serial Cable
  • Power Adaptor
  • Antenna

Software

Auron SMS Server is a Windows-based software package that enables you to send, receive and process SMS and e-mail messages. Supported communication protocols: GSM, HTTP, SMPP, SMTP, POP3. Incoming messages are processed by 'triggers', and can be fully customized.

It's a framework for any scenario where one/two-way SMS is required. Create a voting/polling system, send out mass SMS broadcasts, create a reservation system, etc.. Real-life case-studies are included as sample projects.
