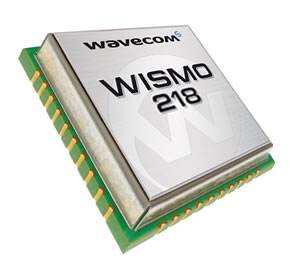

WaveCom Wismo 218

WaveCom Wismo 218

WISMO® (WIreless Standard MOdem) is part of a family of entry level GSM/GPRS modems for M2M applications. It combines the benefits of ease of use, superior quality and reliable supply, all at a very competitive price and without compromising M2M industry specific requirements. The WISMO® 218 is specifically designed for M2M systems being deployed in Europe, Asia and any other country that has 900/1800MHz network coverage.

Memory Internal
Digital Control Up to 11 GPIOs, 2 PWM, 1 SPI (for debug)
Digital Comms 1 UART
Analogue Interfaces 1 ADC
Audio Interfaces 1 analogue audio
Cellular Radio Dual band 900/1800MHz
Cellular Data GSM, CSD, SMS, FAX, GPRS class10
Cellular Voice Codecs HR, FR, EFR, AMR, quality VDA2A, Echo Cancellation, Noise Reduction
Power Supply Extended power management: 3.2V to 4.8V
Low power consumption: 1.3mA idle (Paging mode 9)
Environmental Extended temperatur range: -40°C to +85°C, RoHS compliant
Package Castellation 46 pads, 25 x 25 x 2.8 mm, 3.8g
