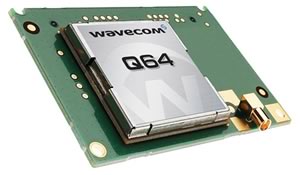

WaveCom Q64

WaveCom Q64

The Q64 is the replacement for GR64 and has a host of new features in the same popular, robust form factor as the GR64, thus facilitating integration into existing product designs. If you appreciated the benefits of the GR64, you will be able to continue using the form factor while taking advantage of the Open AT® Software Suite and our Intelligent Device Services, without discarding existing design efforts.

Core processor ARM9, 32bit, 104MHz running Open AT® RTOS as standard
Memory Fully embedded Flash and RAM for developer use
Digital Control Up to 16 GPIO, USB
Digital Comms 2 UART, I2C
Analogue Interfaces ADC
Audio Interfaces 2 analogue channels, PCM
Cellular Radio Global operation (quad band 800/900/1800/1900 MHz)
Cellular Data GSM standard SMS, CSD (circuit), GPRS cl 10 (packet)
Cellular Voice Quad codec (FR/HR/EFR/AMR)
Package 60pin, 50mm x 33mm x 6.8 mm
