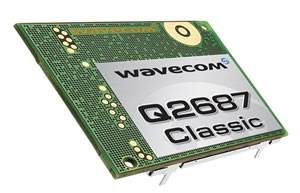

WaveCom Q2687 Classic

WaveCom Q2687 Classic

Q2687 Classic is an entry level version of the Q2687 that is certified for use in the North American markets. It has exactly the same IO features as Q2687 and supports GPRS. Benefit from Open AT® Application portability across the entire Q26 GSM Series and optimize your total system cost.

Core processor ARM9 4 6, 32 bit, 104 MHz running Open AT® RTOS as standard
Memory Internal 32 / 8 Mb Flash
Digital Control Up to 44 IOs, 2 INT, 2 SPI, 1 I2C, 5 x 5 keyboard
Digital Comms 2 UART, USB 2.0 , 1 parallel ports , 1 DAC
Analogue Interfaces 2 ADC
Audio Interfaces 2 analog differential audio, 1 PCM
Cellular Radio Quad GSM band
Cellular Data GSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet)
Cellular Voice Quad codec (FR/HR/EFR/AMR), VDA2 A
RF and IO connectivity 1 UFL connector, 1 RF connection which allows to support board to board solution, 1 RF solder pad, 100 I/O Pins connector
Dimensions L 40 x W 32 x H 4 mm
