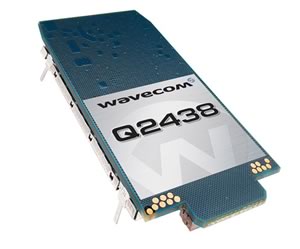

WaveCom Q2438

WaveCom Q2438

Widely approved by CDMA carriers, the Q2438 Wireless CPU® allows you to equip your application with CDMA2000® 1xRTT and AMPS technology. With integrated gpsOne®, the Q2438 is particularly suited for fleet management and tracking applications. It is interchangeable with all GSM/GPRS Q24 series Wireless CPU®s and available with or without RUIM capable OS.

Core processor ARM7
Memory Internal
Digital Control Up to 9 GPIO, I2C, 5 x 5 keyboard
Digital Comms 2 UART, 1 RUIM
Analogue Interfaces 2 ADC, 2 LED
Audio Interfaces 2 analogue channels
Cellular Radio CDMA/1xRTT
Cellular Data 1xRTT
Cellular Voice EVRC, 13K QCELP
Package 60 pin, 58.4mm x 32.8mm x 3.9mm
