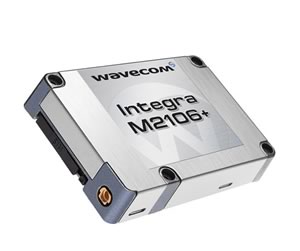

WaveCom Integra M2106+

WaveCom Integra M2106+

Built around Wavecom’s field-proven technology and small enough to fit into the tightest spaces, the Integra M2106+ offers a rapid, handy path to adding wireless capability to existing systems. It features programmable GPIO, keypad and ADC interfaces. The Integra M2106+ is a "Finished goods" certified plug and play product.

Core processorARM7, 32 bit, 52 MHz running Open AT® RTOS as standard
MemoryInternal, 32Mb Flash and up to 16Mb SRAM or PSRAM
Digital Control3 IOs, 1 SPI, 1 I2C, 5 x 5 keyboard
Digital Comms1 UART
Analogue Interfaces1 ADC
Audio Interfaces1 analog differential audio
Cellular RadioSupporting 850-900-1800-1900MHz GSM band
Cellular DataGSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet)
Cellular VoiceSupported Codecs FR/EFR/AMR (HR as option), VDA2 A
RF and IO connectivity1 MMCX connector, 50 I/O Pins connector, SIM holder
Dimensions46 x 64 x 12 mm
