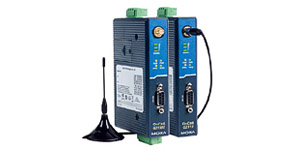

Moxa OnCell G2100 Industrial quad-band GSM/GPRS Modem Series

Moxa OnCell G2100 Series

The OnCell G2100 Series of industrial quad-band GSM/GPRS modems are designed to transmit data and short messages (SMS) over GSM/ GPRS mobile networks. The modems can be used to increase the efficiency of maintenance and communication, but do not require detailed training. In addition, the modems can be mounted on a DIN-rail or wall. The OnCell G2100 modems accept a 12 to 48 VDC power input, making them suitable for use with a variety of field power sources. The serial ports feature 15 KV ESD line protection to protect the product from harmful electrical discharge, and separate RS-232 and RS-422/485 interfaces are built into the OnCell G2150I, each with 2.5 KV RMS isolation protection for one minute. The two serial interfaces on the OnCell G2150I make it ideal for attaching all kinds of devices, such as stand-alone controllers, PC COM ports, and multi-dropped electric meters. In addition, the OnCell G2110-T has an extended operating temperature (-40 to 75C) design that makes it suitable for heavy industrial use.

Features:

  • Quad-band GSM/GPRS 850/900/1800/1900 MHz
  • Separate RS-232 and RS-422/485 serial interfaces (G2150I only)
  • 2.5 KV RMS isolation for 1 minute for all serial signals (G2150I only)
  • Extended operating temperature from -30 to 75C (G2110-T only)
  • Vertical IP30 housing with SIM card protection
  • LED indicators for GSM/GPRS, data transmission, and signal level
  • DIN-Rail and wall mounting
  • SMS Tunnel Mode provided
<

Software

ActiveXperts SMS Messaging Server is a Windows-based software package that enables you to send, receive and process SMS and e-mail messages. Supported communication protocols: GSM, HTTP, SMPP, SMTP, POP3. Incoming messages are processed by 'triggers', and can be fully customized.

It's a framework for any scenario where one/two-way SMS is required. Create a voting/polling system, send out mass SMS broadcasts, create a reservation system, etc.. Real-life case-studies are included as sample projects.
